"HIT gives a credible impression of a brand and product."

THIS PRINTER IS CAPABLE OF

  • Single or double-sided printing

  • Magnetic stripe or smart encoding

  • Over 10,000 cards per year

  • High print speed

  • Holographic ID Card lamination and UV printing

KEY FEATURES

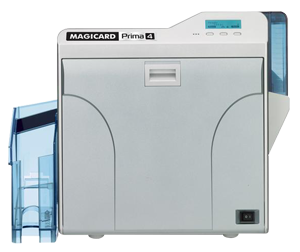

The Magicard Prima 4 secures card issuance with a combination of inline and post-printing options. Ultraviolet (UV) images or text, printed inline, can be augmented with overlaminates for added durability and security – including standard and customized holographic options. A logical printer lock is fitted as standard.Using a reverse-transfer printing process, images are first printed onto a thin film then heat transferred onto the card surface. This produces a high resolution glossy image, printed right over the edge of the card. The quality of the finished card is comparable to off-set litho printing, but with the advantage that every card can be different.

  • In-Line laminator options
  • Superb print quality
  • 3 Year Warranty: Full three year UltraCoverPlus warranty including printhead replacement and free
    printer loaner service
  • Built-In USB and Ethernet connection
  • Magnetic strip, Barcode, Contact & Contactless encoding options
  • Holographic over lamination option



SPECIFICATION

DETAILS

Warranty

Three years UltraCoverPlus warranty which includes full printhead coverage and free loaner service - North America, EU and other selected countries. Elsewhere 12 months limited warranty.

Print speed

Up to 80 cards per hour single-sided (YMCK with transfer to card)

Card capacity

100 cards input and output hoppers

Print head

Simple field replaceable unit

Printer interfaces

USB (2.0) Full-Speed (12Mbps) and Hi-Speed (480Mbps). 10BASE-T/100BASE-TX Ethernet

Software drivers

Windows 2000 / XP / VISTA / 2003 Server / 2008 Server / Windows 7 / Server 2012 /Windows 8. NOTE: This driver operates with 32 bit and 64 bit Windows.

Security features

Standard or custom holographic laminates (requires lamination module) and UV film options

Cleaning

Removable cleaning roller cassette

Dimensions

343 mm width x 320 mm height x 330 mm length. (13.5" width x 12.6" height x 13" length)

Weight

15.5 Kg (34.1 lbs)

Operating conditions

15 to 30°C (59 to 86°F) ; 35% to 70% non-condensing

OPTIONS

DETAILS

Inline laminator

Compact, single-sided or double-sided. Part no Prima 451 / Prima 452

Magstripe encoder

Prima with HiCo/LoCo Magstripe encoder. Part No Prima 421

Contactless card encoder

Contactless card supported: Philips:Mifare®, DESFire®, HID: iCLASS, Legic®

Smart card encoder

Optional chip contact programming facility for smart cards. Part No Prima 422

Bend remedy

Bend remedy for Prima 4 Duo Part No Prima 424 ( fitted as standard in Prima 4 Uno)

MODELS

DETAILS

Prima 4 Uno

Single-sided reverse transfer printer. Part No Prima 401

Prima 4 Duo

Double-sided reverse transfer printer. Part No Prima 402
