"HIT gives a credible impression of a brand and product."

THIS PRINTER IS CAPABLE OF

  • Single or double-sided printing

  • Magnetic stripe, combi, contact or contactless encoding

  • Over 10,000 cards per year

  • High print speed

  • Custom HoloKoke watermark security

KEY FEATURES

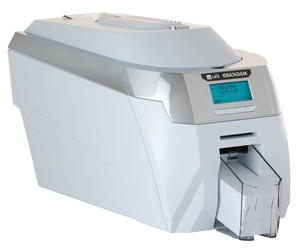

Built for professionals, the Rio Pro’s superior card printing quality is complemented with a full range of options: single or double-sided printing (with field upgrade available), batch or one-off card printing and secure encoding with magnetic stripe, contact and contactless technologies. Built-in Standard HoloKote® can also be customised to an individual logo or security design.

  • Standard HoloKote with option to customize to an individual design
  • Field upgradable from single to double-sided printing
  • Edge-to-edge printing
  • Superior print quality enabled by ICC profiles
  • Full range of encoding options: magnetic stripe, barcode, contact and contactless
  • Easy to use four line display
  • 100-card hopper & 70-card stacker for batch printing plus hand-feed slot
  • Built in USB and Ethernet connection with Windows 8, 7, XP and Vista (32/64 bit) compatibility



SPECIFICATION

DETAILS

Visual security

A HoloKote security watermark can be printed across the card surface. When used with HoloPatch® cards, one area of the HoloKote watermark is highlighted as a high visibility security seal. A choice of 4 standard HoloKote designs and 1 standard HoloKote Flex design are selectable from the printer driver. For added security, the Custom HoloKote option (ordered separately) enables customisation of the watermark to an individual logo or security design.

Warranty

Three years UltraCoverPlus warranty which includes full printhead coverage and free loaner service - North America, EU and other selected countries. Elsewhere 12 months limited warranty.

Print mode

Color dye sublimation and monochrome thermal transfer.

Printer interfaces

USB and Ethernet both fitted as standard.

Print speed

*Colour standard mode: 31 seconds, *Colour fast mode: 23 seconds, *Monochrome resin: 6 seconds (*single-sided card).

Card capacity

100-card feeder, 70-card stacker.

Software drivers

MacOSX, Windows 2000 Professional (SP4), XP, Vista, Windows 7, Windows 8.1, Windows Server 2003 R2 SP2, Server 2008, Server 2012 (Windows 8 Server) Note: 32bit & 64bit Compatibility.

Printer size

470mm L x 220mm W x 250mm H (18.5" L x 8.6" W x 9.8" H) including feeder and stacker.

Printer weight

4.9kg (10.8 lbs).

Card thickness

0.51mm to 1.27mm (0.020” to 0.050”).

Card types

ISO PVC blank, magnetic stripe, self-adhesive, printable type proximity and smart cards, HoloPatch cards.

Card dimensions

ISO standard CR80 85.6mm x 54mm or 3.375" x 2.125", and CR79 83.9mm x 51mm or 3.303" x 2.051".

Environment

Sheltered office environment 10°C to 30°C (50°F to 85°F).

Power source

External power supply 100-240V 50-60Hz autoranging

OPTIONS

DETAILS

Double-sided upgrade

Upgrade the single-sided Rio Pro to the Rio Pro Duo.

Custom HoloKote

Kit contains a CD to install the data and a Custom HoloKote card that fits into your printer.

Encoding options

Magnetic stripe card encoding, smart card encoding. (Mifare, Desfire, iClass, contact chip and combi). Other smart card encoders also available.

MODELS

DETAILS

3652-0001

Magicard Rio Pro ID card printer.

3652-0002

Magicard Rio Pro ID card printer with magnetic stripe encoder.

3652-0003

Magicard Rio Pro ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip).

3652-0004

Magicard Rio Pro ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip) & magnetic stripe encoder.

3652-0021

Magicard Rio Pro Duo ID card printer.

3652-0022

Magicard Rio Pro Duo ID card printer with magnetic stripe encoder.

3652-0023

Magicard Rio Pro Duo ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip).

3652-0024

Magicard Rio Pro Duo ID card printer with combi smart card encoder (Mifare, Desfire, iClass & contact chip) & magnetic stripe encoder.
